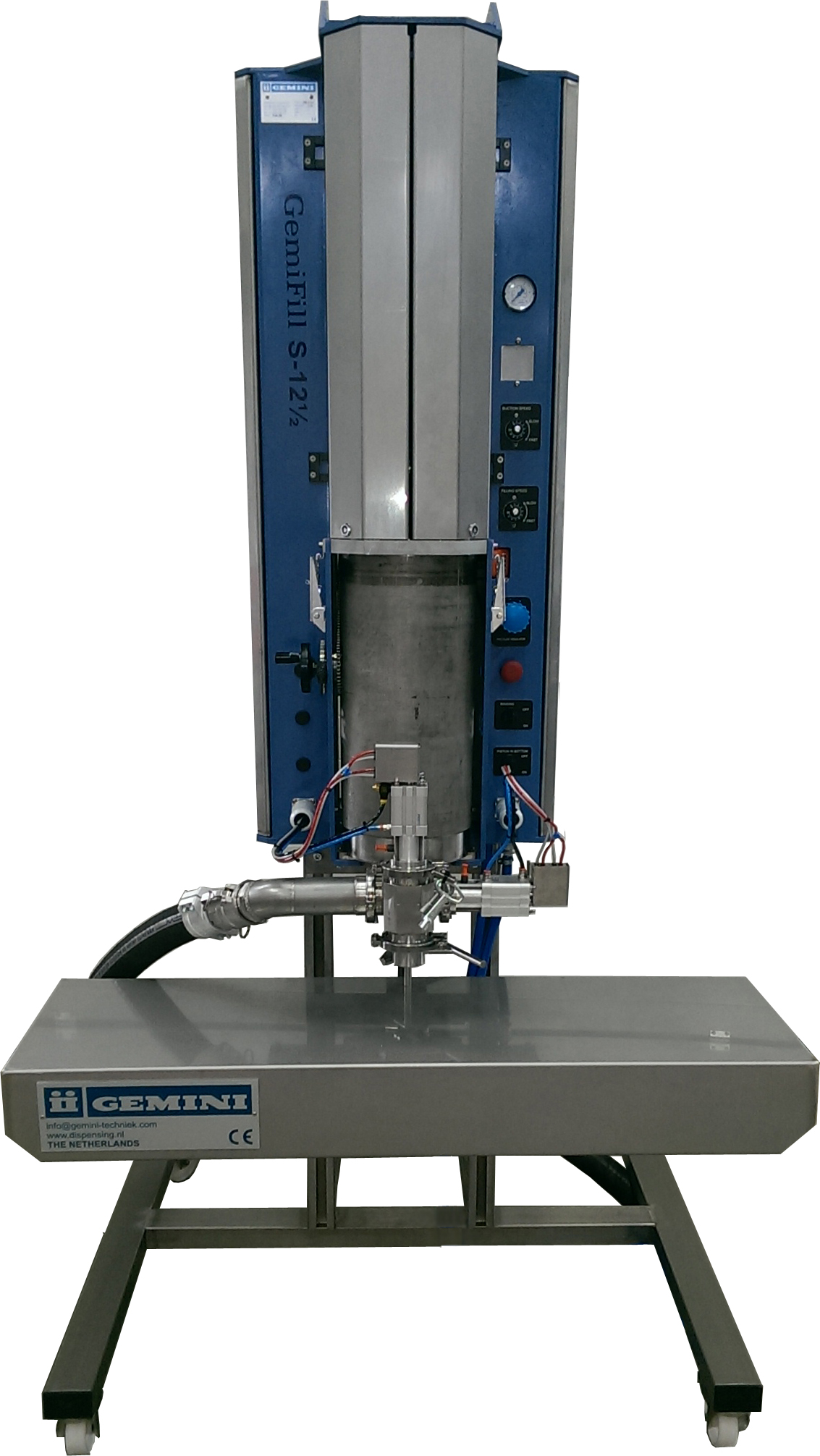

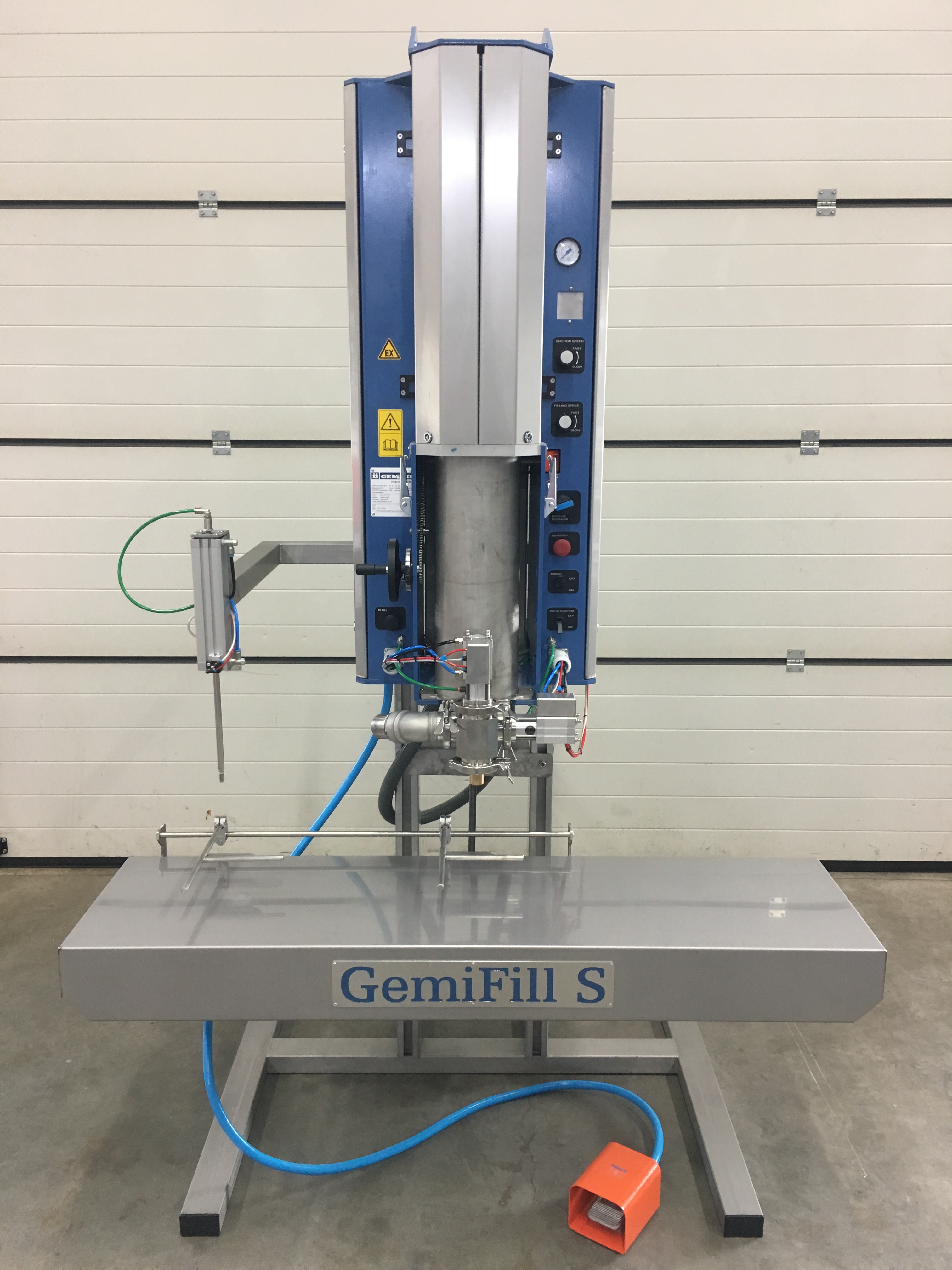

GemiFill S
SEMI-AUTOMATIC VOLUMETRIC FILLING MACHINE
TYPICAL FEATURES
- Solid construction and easy to operate.
- High accuracy and reproducibility.
- Fully pneumatic operated (explosion proof in accordance with ATEX).
- Self-priming, filling directly out of a drum, tote or product hopper.
- Fast change to a different fill volume by means of 7 pre-set volumes.
- Easy to clean by means of an automatic rinse cycle and removeable filling cylinder.
- Movable frame with height adjustable working table executed in stainless steel.
- Easy to expand with feed- and discharge roll conveyor, sub-level filling lance, lid closer (pressing/crimping) or screw cap closer.
VOLUMETRIC FILLING METHOD
The filling machines are based on a vertical placed self-priming dosage cylinder. A piston is verticaly moving inside a cylinder. The stroke length and the diameter of the piston determine the fill volume. With a multiple stroke counter, larger fill volumes can be realised.
OPTIONAL SET-UP

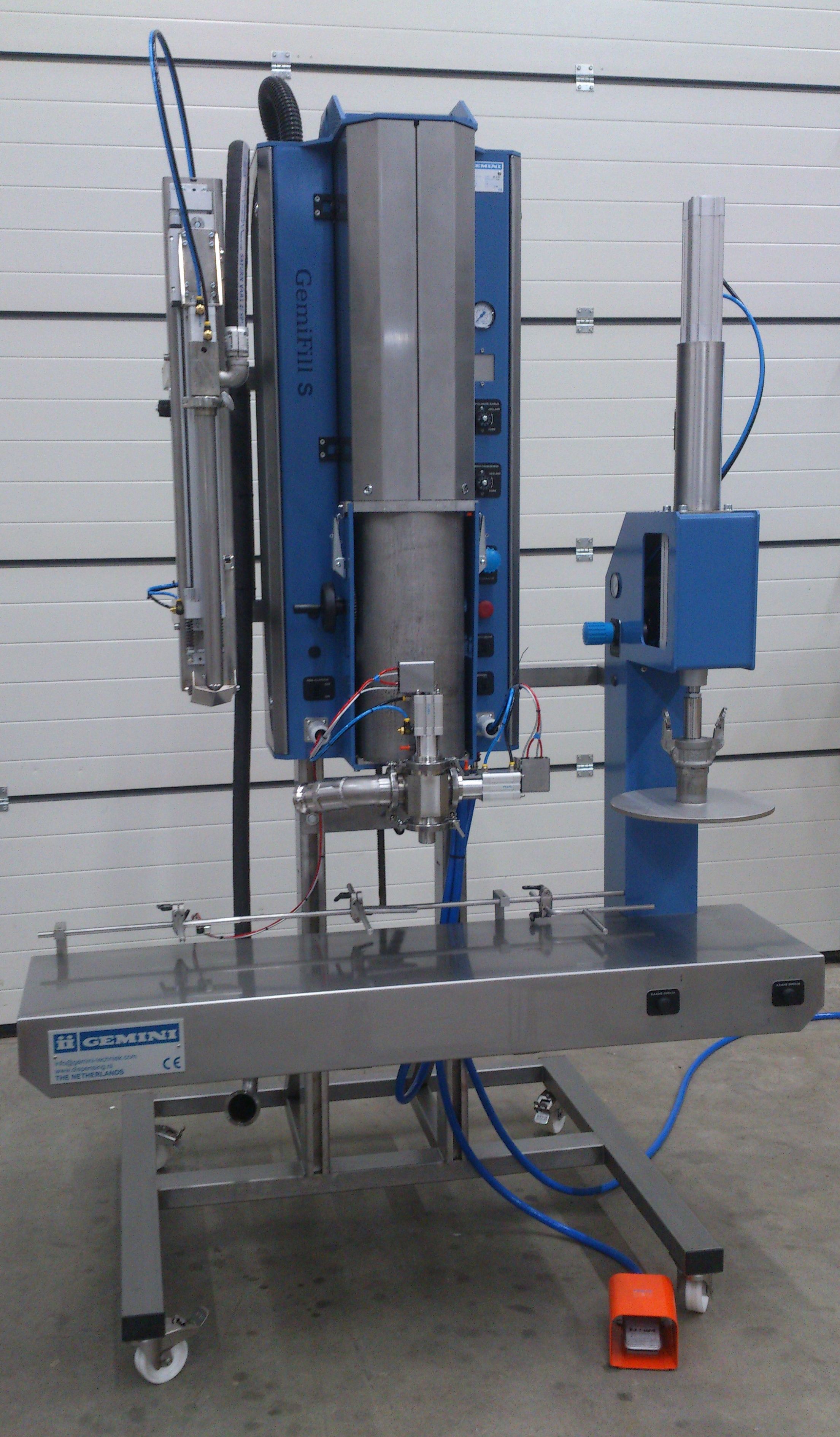

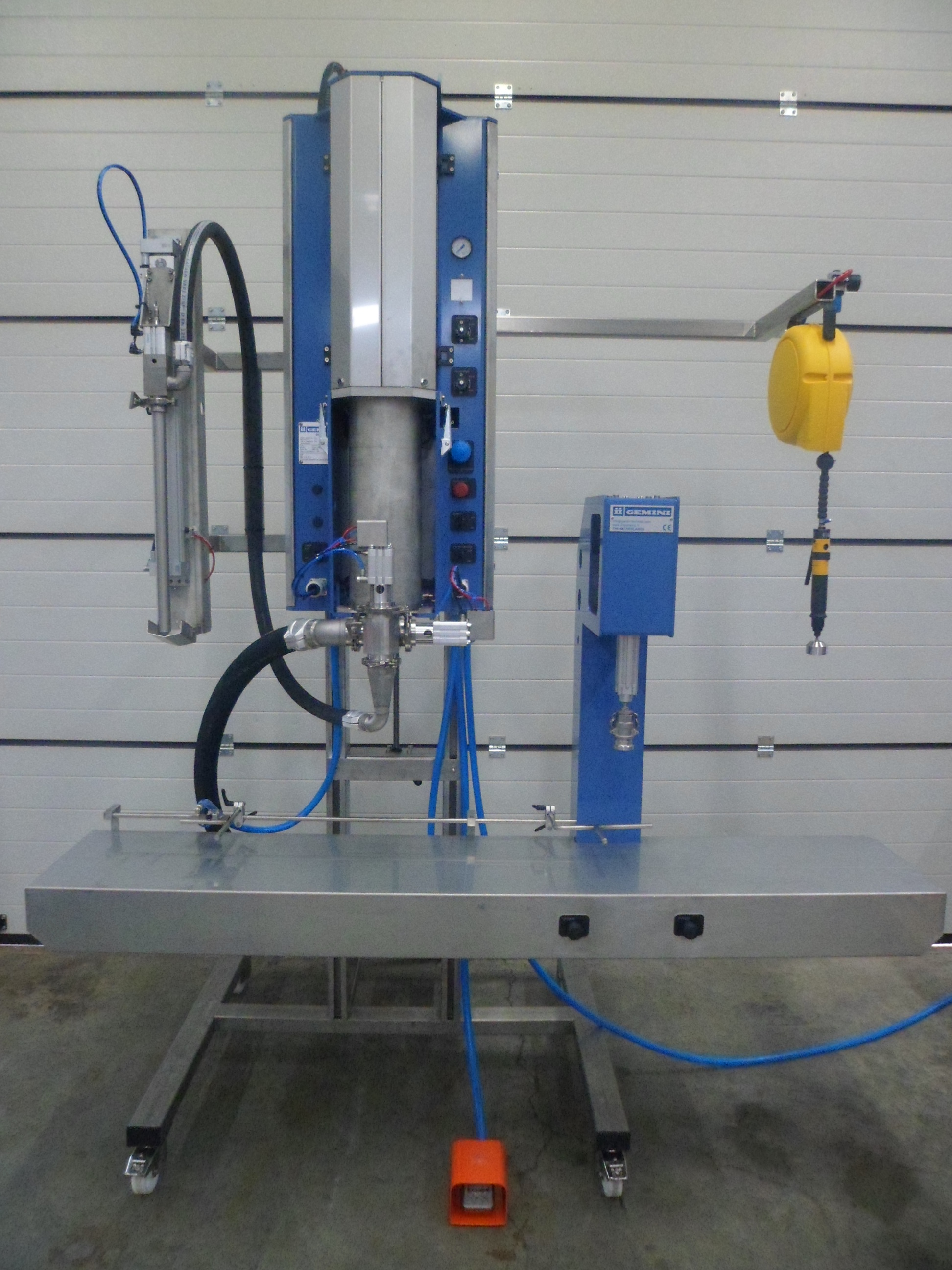

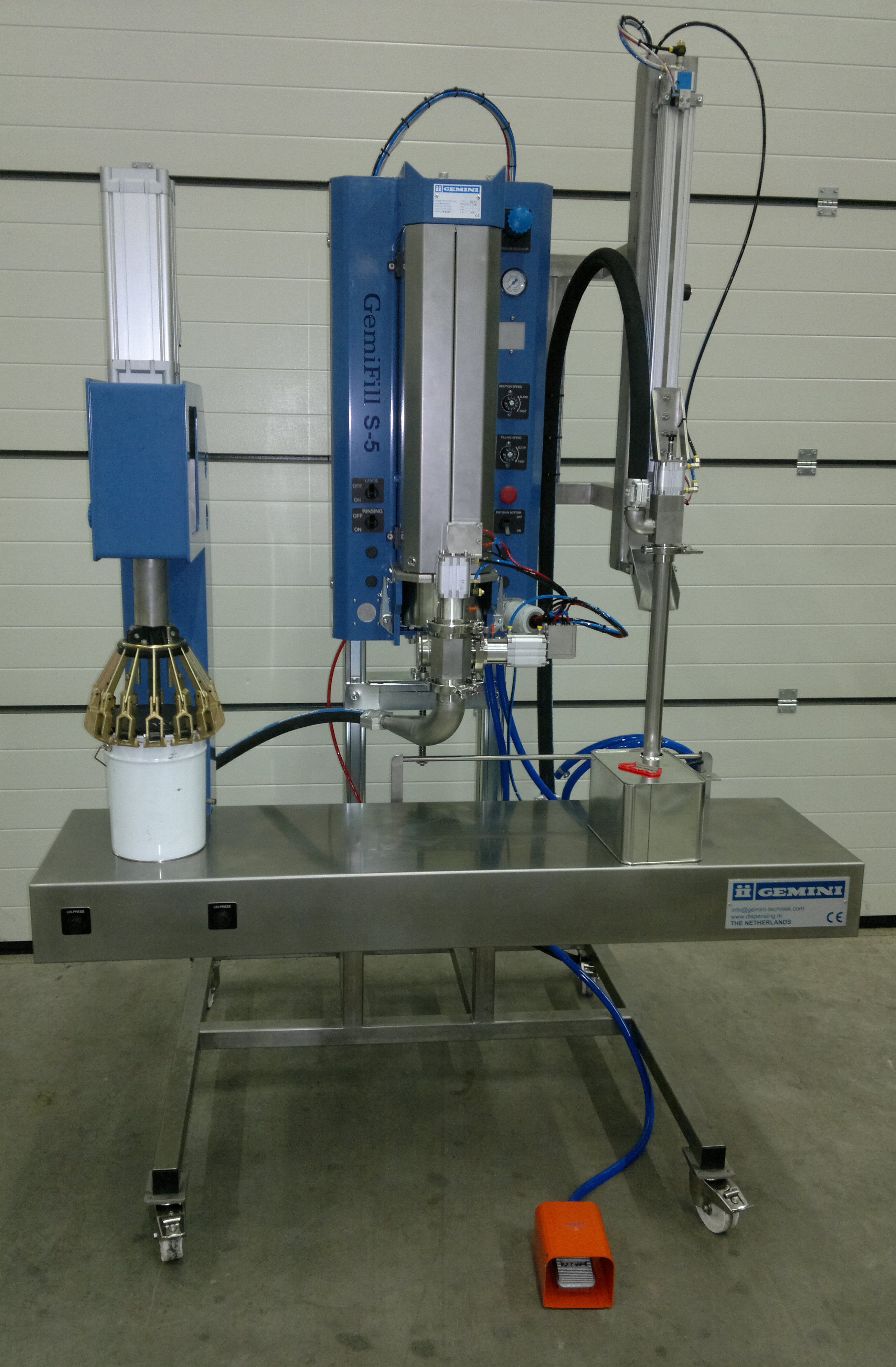

The GemiFill S filling machine can be extended with the following options:

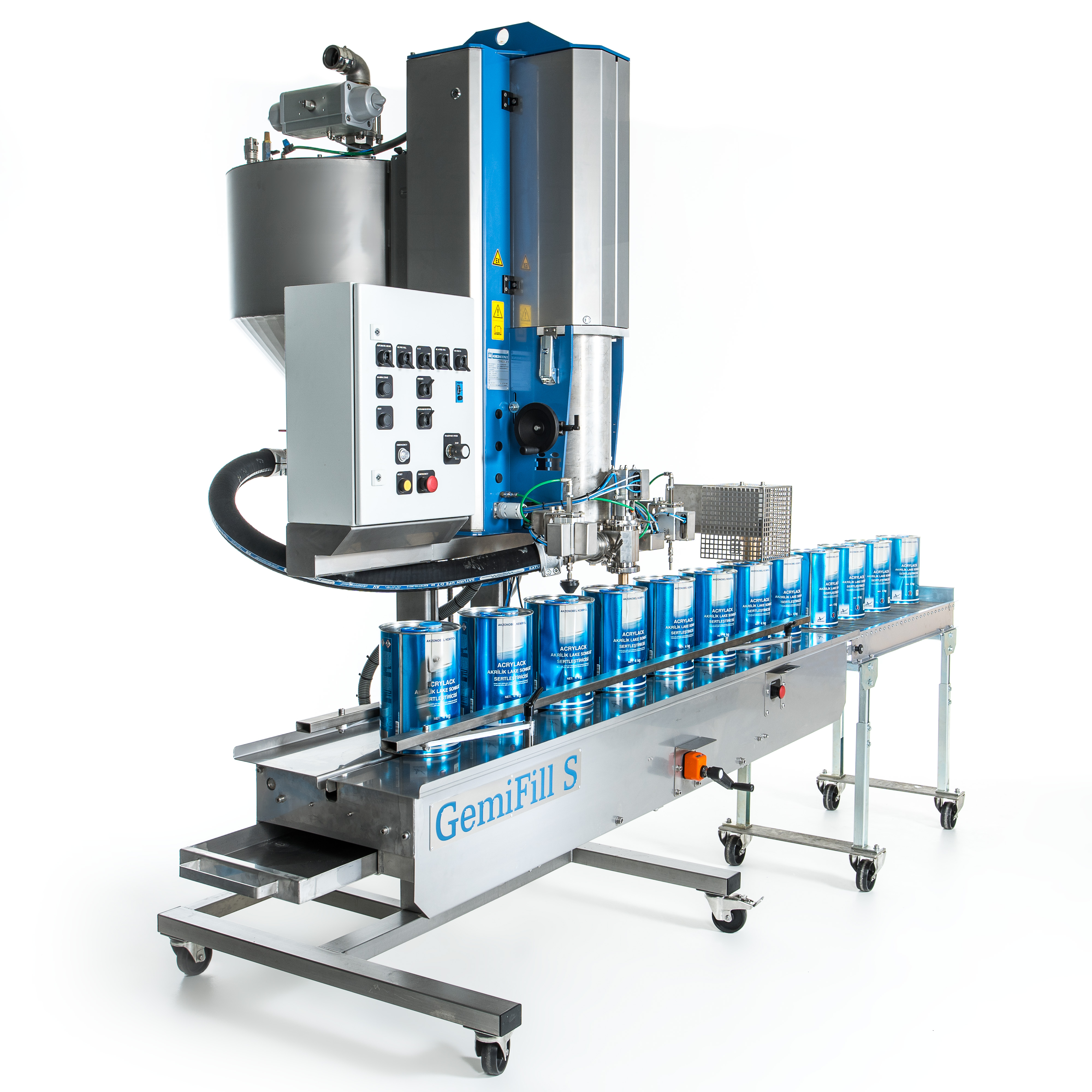

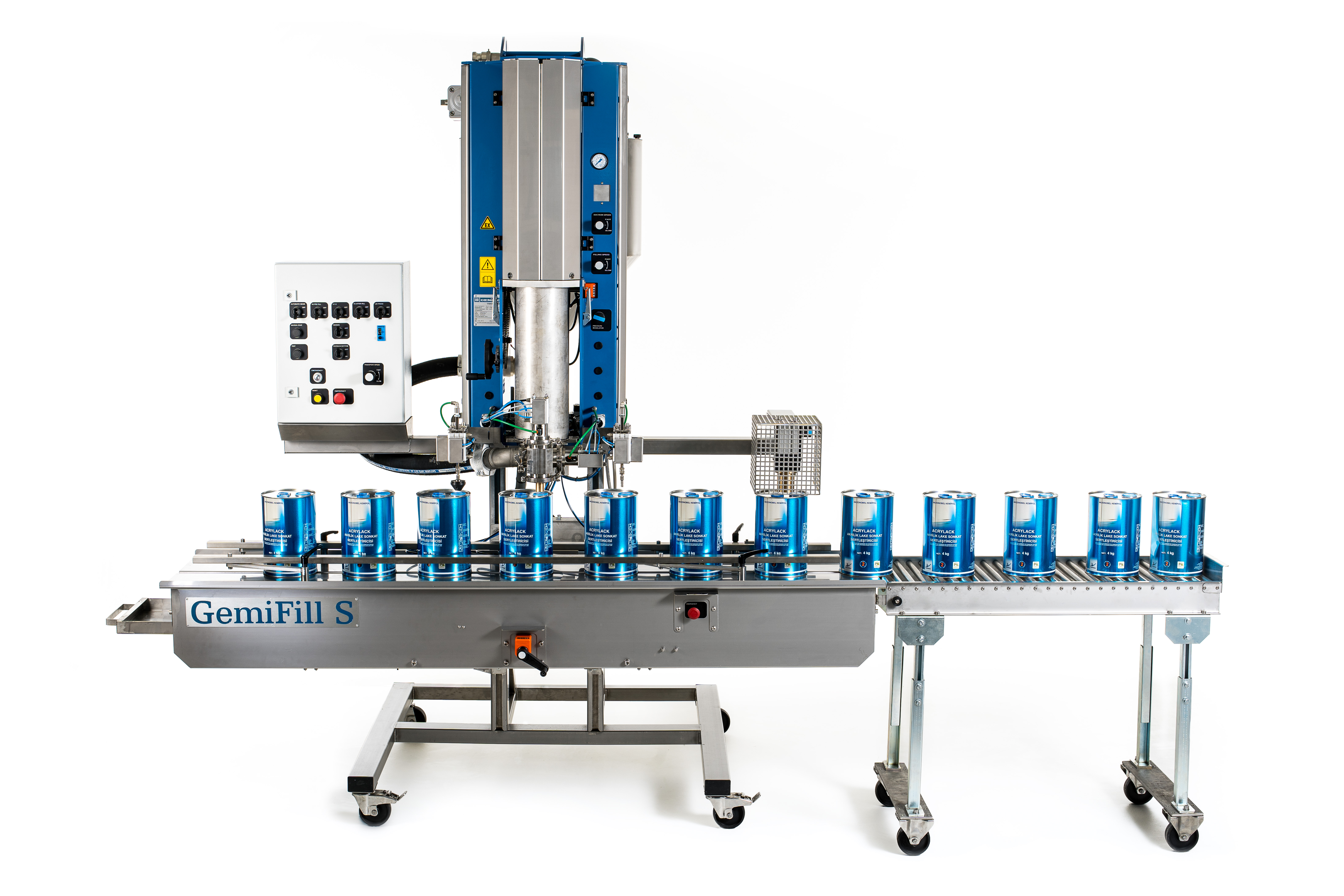

- Feed- and discharge roll conveyor.
- Sub-level filling lance.
- Lid closing device.
- Screw cap closer.
- Multiple stroke counter.
- Stepless volume adjustment.
Other options upon request.
