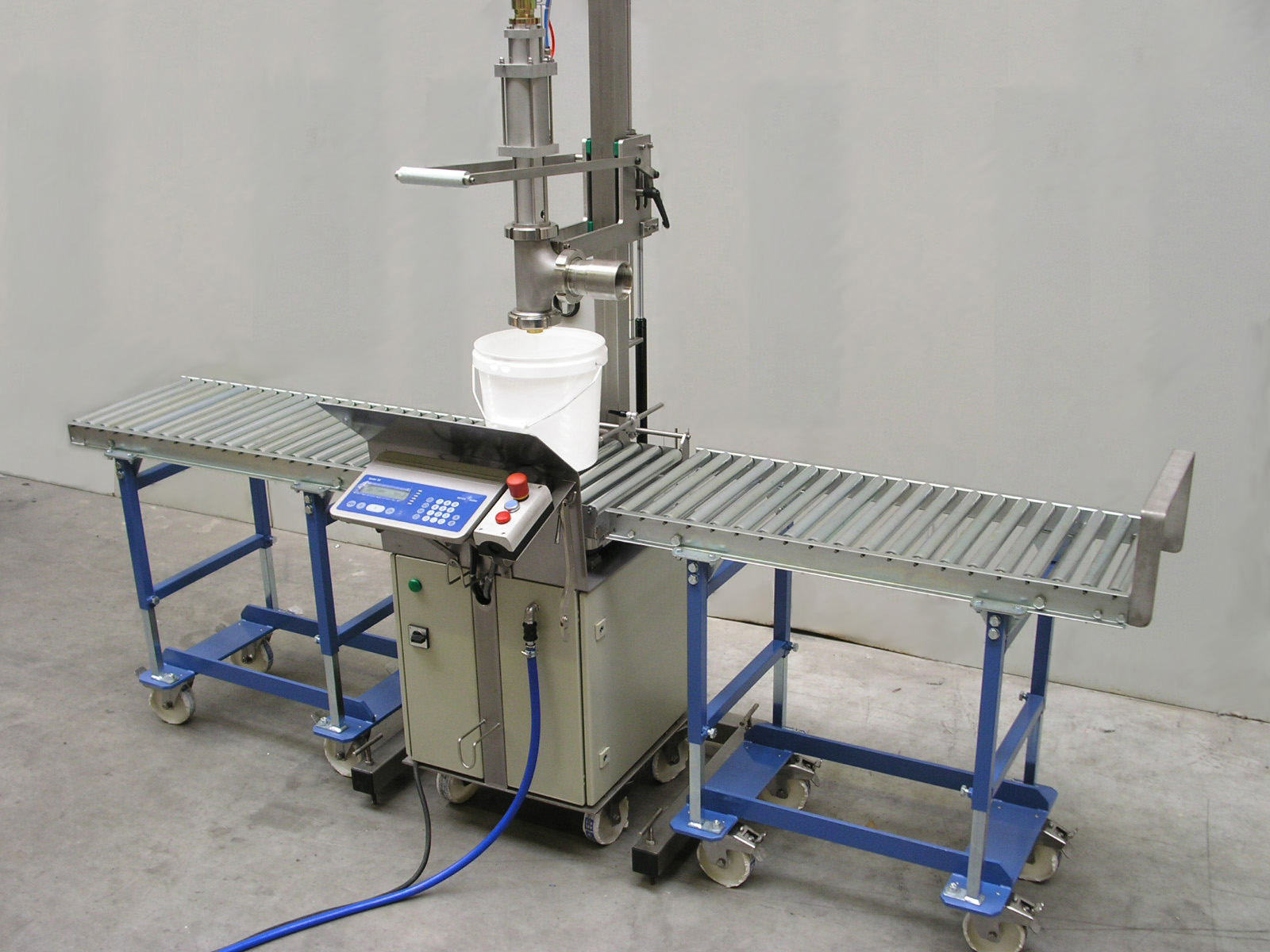

GemiFill GR
GRAVIMETRIC FILLING MACHINE
TYPICAL FEATURES
- Filling directly from a tote, tank, storage container, dissolver, etc.
- Height adjustable filling valve for different types of packaging.
- Filling by means of a pump (pneumatic/electric) or based on gravity.
- Easy to clean by means of an automatic rinse cycle and dismountable filling valve.
- Simple to operate batch controller (with selflearning parameters).
- Easy to expand with a roller track, lid closer (pressing/crimping), screw cap closer, sublevel filling lance, etc.
- Upgradable to a fully automatic filling installation by means of an infeed conveyor, conveying system, lid placing and lid closing.
STANDARD FEATURES
- Non-explosion proof.
- Batch controller with self-learning parameters (e.g. coarse and fine flow shutoff points, etc.).
- 2-Step pneumatic operated filling valve for coarse and fine flow filling.
- Valve is height adjustable by means of a spindle.
- Filling by means of an air driven membrane pump or based on gravity.
- With 60 kg. weighing scale.
OPTIONAL FEATURES
- Explosion proof in accordance with ATEX regulations.
- Filling of multiple components (see GemiFill GR-M flyer for more information).
- Filling by means of an electrical pump (frequency controlled).
- Multiple filling heads.
